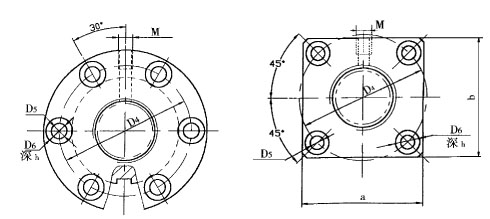

| FNL型内循环滚珠丝杠副尺寸系列 |
|
 |
| |
|
| |
连接尺寸 |
平健尺寸GB1095 |
小圆螺母GB810 |
额定载荷(KN) |
循环列数 |
刚度KN/um |
规格代号 |
L1 |
L2 |
动载荷Ca |
静载荷Coa |
35 |
51 |
4×4×20 |
M20×1 |
2.4 |
5.6 |
3 |
398 |
FNL1202 |
45 |
73 |
4×4×30 |
M26×1.5 |
4.98 |
10.92 |
3 |
448 |
FNL1604 |
45 |
73 |
4×4×30 |
M30×1.5 |
5.70 |
13.35 |
3 |
519 |
FNL2004 |
46 |
77 |
4×4×30 |
M40×1.5 |
6.10 |
16.37 |
3 |
654 |
FNL2504 |
46 |
82 |
6×6×30 |
M50×2 |
7.00 |
10.90 |
3 |
823 |
FNL3204 |
65 |
97 |
4×4×30 |
M30×1.5 |
6.9 |
14.5 |
3 |
400 |
FNL1605 |
55 |
87 |
4×4×30 |
M30×1.5 |
7.4 |
15.6 |
3 |
536 |
FNL2005 |
64 |
94 |
6×6×40 |
M40×1.5 |
8.4 |
17.08 |
3 |
657 |
FNL2505 |
77 |
117 |
6×6×50 |
M50×2 |
9.5 |
24.6 |
3 |
826 |
FNL3205 |
84 |
124 |
6×6×50 |
M60×2 |
10.4 |
32.8 |
3 |
1025 |
FNL4005 |
66 |
98 |
6×6×50 |
M45×1.5 |
12.20 |
26.69 |
3 |
636 |
FNL2506 |
92 |
125 |
6×6×55 |
M50×2 |
14.40 |
32.84 |
3 |
840 |
FNL3206 |
82 |
124 |
6×6×55 |
M60×2 |
15.40 |
44.82 |
3 |
1020 |
FNL4006 |
125 |
164 |
6×6×55 |
M52×1.5 |
27.80 |
71.00 |
5 |
820 |
FNL3208 |
125 |
164 |
6×6×55 |
M60×1.5 |
30.70 |
89.00 |
5 |
1002 |
FNL4008 |
115 |
157 |
6×6×63 |
M52×2 |
24.90 |
56.60 |
3 |
772 |
FNL3210 |
115 |
157 |
6×6×63 |
M62×2 |
31.50 |
68.00 |
3 |
973 |
FNL4010 |
135 |
176 |
6×6×63 |
M64×2 |
33.10 |
51.40 |
3 |
909 |
FNL4012 |
|
| |
|
| |
|
|
